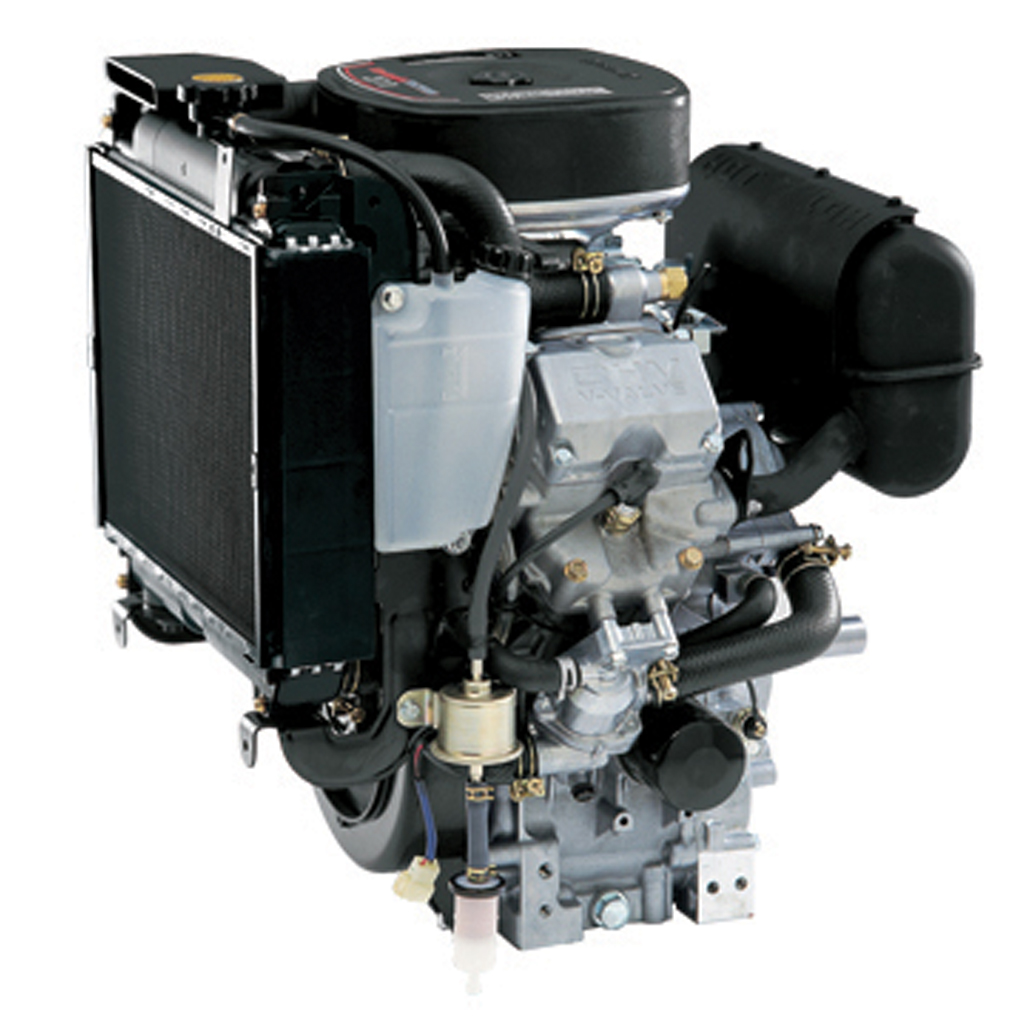

FD750D-S06
1 1/8″ Shaft

FEATURES

SPECIFICATION
Engine Type	Liquid-Cooled V-twin 4-cycle Horizontal Shaft OHV Gasoline Engine
Number of Cylinders	2
Bore x Stroke	3.07 x 3.07 in. (78 x 78mm)
Displacement	745cm3 (45.5 cu. in.)
Compression Ratio	8.5:1
Maximum Power	25.0hp (18.7 kW)/ 3600 rpm
Maximum Torque	41.0 ft. lbs. (55.6 N•m)/ 2600 rpm
Oil Capacity	2.1 U.S. qt. (2.0 liter) w/Filter
Dry Weight (without muffler)	122 lbs. (55.4kg)
