VMC GP10 Mini GP Bike

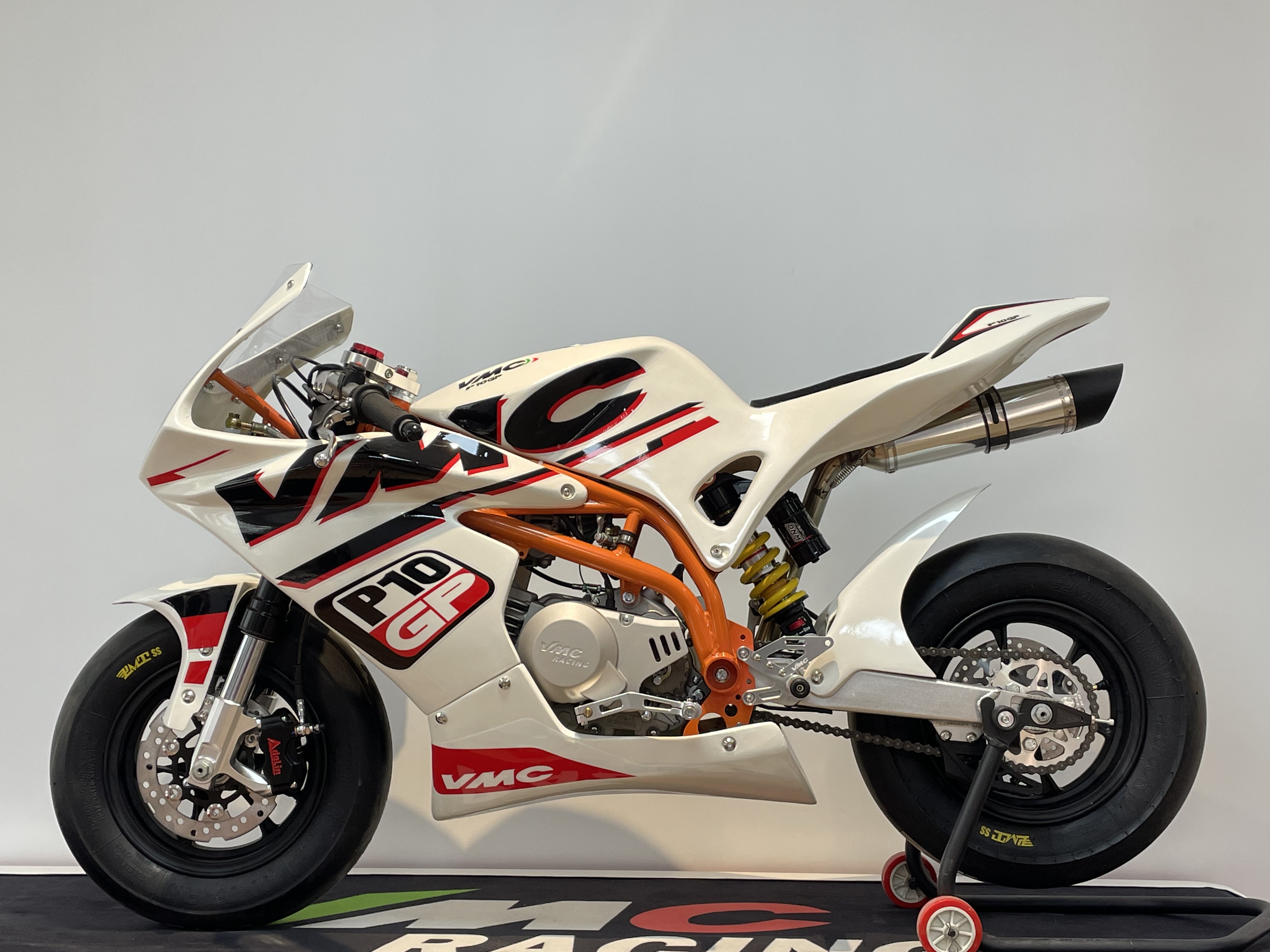

VMC GP‑10 — Race-Ready MiniGP Machine

Overview

The VMC GP‑10 is a competition‑oriented miniGP bike built for kart tracks, youth racing, and training. Designed with performance, adjustability and rider progression in mind, it offers a serious riding experience in a compact, nimble package.

Key Features & Highlights

• Ready to Race

The VMC GP Bikes are fitted with a catch can, axle, bar and peg sliders so you can take it straight to your next mini bike track meet

• Chassis & Frame
  Built from CrMo (chromium‑molybdenum) steel tube construction, with pulse welding techniques to reduce weight while maintaining structural strength.
  The seat and main frame geometry is tuned to fit smaller riders yet remain track‑capable.

• Engine Options & Performance
  The GP‑10 can be configured with either a 110 cc or 160 cc oil-cooled 4‑stroke engine.

  • 110 cc variant: ~ 7.2 kW @ 9,500 rpm; torque ~ 8.0 N·m @ 8,500 rpm

  • Higher variants (160 cc / even up to 190 cc in some cases) are also offered.
    The engine is a single-cylinder, 4-stroke with kick start.
    Gearbox: 4-speed manual (N–1–2–3–4)

• Suspension & Handling

  • Rear: DNM adjustable shock absorber with preload and rebound / compression adjustment (18‑position rebound adjust is cited)

  • Front: Typically a racing / inverted fork suited for track use (specs vary by supplier)

• Brakes & Wheels

  • Brakes: Front disc (often ~190 mm) with multi‑piston radial calipers; rear disc ~180 mm in many configurations

  • Wheels / tyres: 10‑inch wheel size is common. Front tyre spec ~100/85‑10; rear ~120/80‑10

  • Frame includes aluminum swingarm in many builds for weight savings.

• Dimensions & Weight

  • Overall dimensions: ~ 146 × 65 × 85 cm (L × W × H)

  • Seat height: ~ 63 cm

  • Wheelbase: ~ 103 cm

  • Dry / net weight: ~ 60 kg (net), ~ 61 kg in some builds.

• Bodywork & Components

  • Fairings: Fiberglass / FRP shell, often reinforced with Kevlar patches for durability and weight savings.

  • Exhaust systems: Stainless or TIG‑welded mufflers; tuned for performance.

  • Adjustable parts: Footpegs, chain adjusters, etc., are often CNC-machined to allow fine tuning. (common in miniGP builds)

  • Decal / styling kits usually included for customization

• Track Stands

All VMC GP bikes come with front and rear track stands as standard

Suggested Use & Target Riders

The VMC GP‑10 is ideal for:

• Young riders (e.g. age 7 to 15) stepping into racing classes, giving them a genuine race bike experience in a safer format.

• Kart track racing, miniGP competitions, training and track days

• Enthusiasts wanting a compact, upgradeable race platform that’s easier to handle than full-size bikes
